HPC Infrastructure

- Overview

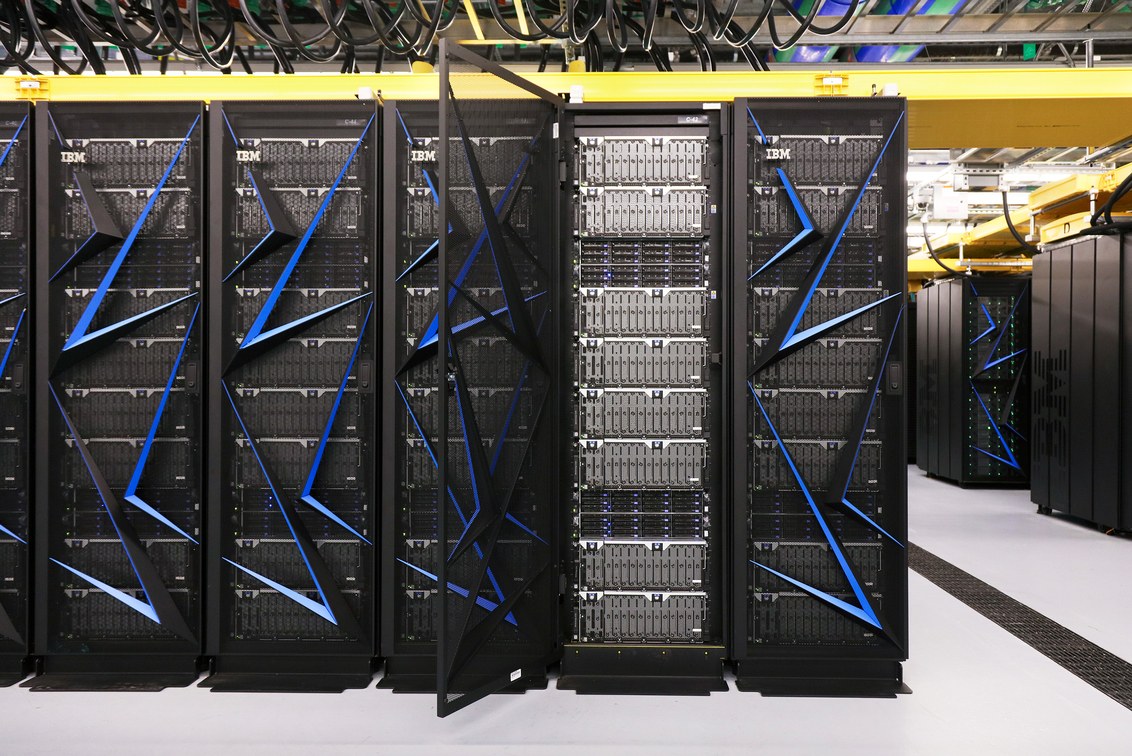

High-performance computing (HPC) infrastructure is a method of processing large amounts of data at high speeds using multiple computers and storage devices. One of the best-known types of HPC solutions is the supercomputer.

HPC clusters are made up of hundreds or thousands of computers, called nodes, that are connected through a network. Each node is responsible for a different task. The computers use either high-performance multi-core CPUs or GPUs (graphical processing units).

HPC can be run on-premises, in the cloud, or as a hybrid of both. HPC is used for solving complex problems in engineering, science, and business. For example, HPC can be used to simulate car crashes for structural design, molecular interaction for new drug design, or airflow over automobiles or airplanes.

Some challenges of HPC infrastructure include: accelerating workloads while keeping costs down, protecting sensitive data, and driving smarter decisions from data.

HPC allows companies and researchers to aggregate computing resources to solve problems that standard computers cannot handle individually or would take too long to process. For this reason, HPC is sometimes referred to as supercomputing.

- Key Characteristics of HPC Infrastructure

High-Performance Computing (HPC) infrastructure refers to the specialized systems and software used to solve complex problems that require significant computational power, often too large or complex for a single computer. These systems typically leverage parallel processing, distributing tasks across multiple nodes in a cluster to achieve faster results.

Key Characteristics of HPC Infrastructure:

• Parallel Processing: HPC relies on parallel processing, where tasks are divided into smaller pieces and solved simultaneously by multiple processors or nodes.
• Clusters: HPC systems often utilize clusters, groups of interconnected computers working together as a single system.
• Specialized Software: HPC requires specialized software for managing resources, scheduling jobs, and distributing data across the cluster.
• High-Speed Networking: Fast and reliable networking is crucial for data transfer between nodes and storage.
• Storage: High-capacity storage is needed to handle large datasets and facilitate efficient data access.

Components of HPC Infrastructure:

• Compute: The core of the HPC system, including processors, memory, and dedicated circuits.
• Network: High-speed networking allows data transfer between nodes and storage.
• Storage: External storage, often cloud storage, provides high-volume and high-access/retrieval speeds.
• Memory: Essential for shared memory scale-up and other advanced techniques.

- The Challenges of Building and Maintaining an HPC Infrastructure

Building and maintaining a High-Performance Computing (HPC) infrastructure presents numerous challenges, including legacy systems, the integration of multiple processors and accelerators, and the need for consistent performance across diverse environments. Cost, scalability, and energy efficiency also pose significant hurdles.

Here's a more detailed look at the challenges:

1. Platform Complexity and Integration:

• Legacy Systems: Integrating older HPC systems with newer technologies can be complex and require significant effort.
• Hybrid Environments: Ensuring consistency and performance across different HPC environments, including cloud and on-premises, is crucial.
• Multi-Processor and Accelerator Integration: Effectively combining different types of processors (CPUs, GPUs, etc.) and accelerators within an HPC system requires careful planning and software development.
• Hardware Abstraction: Creating a layer that hides the complexity of the underlying hardware from users and applications is essential for ease of use and portability.

2. Scalability and Cost:

• Scalability: HPC systems need to scale both in capacity (storage) and performance (compute) to accommodate growing datasets and workloads.
• Initial and Ongoing Costs: Building and maintaining HPC infrastructure, including hardware, software, and personnel, can be very expensive.
• Energy Consumption: The high density of computing in HPC clusters requires efficient power management and cooling systems to reduce energy consumption.

3. Technical Challenges:

• Interconnect Bottlenecks: Data transfer speeds between nodes within an HPC system can be a bottleneck, hindering overall performance.
• Memory and Storage Hierarchy: Efficiently managing data movement between different memory levels (caches, RAM, storage) is crucial for performance.
• Metadata Management: As datasets grow, the ability to quickly handle metadata operations (e.g., file access, metadata updates) becomes critical.
• Parallel Programming: Developing and optimizing software for parallel execution on HPC systems requires specialized skills and expertise.

4. Other Challenges:

• Rapid Innovation: Keeping up with the rapid pace of technological advancements in HPC, including new hardware and software, can be challenging.
• Workforce Development: Training a skilled workforce with expertise in HPC programming, systems administration, and related areas is essential.
• Security: Protecting HPC systems from unauthorized access and cyber threats is crucial, especially as these systems often contain sensitive data.
• Usability: HPC systems are often perceived as complex and difficult to use, requiring specialized knowledge and tools. Simplifying access and making them more user-friendly can help broaden their adoption.

5. Addressing the Challenges:

• Focus on Hybrid and Cloud HPC: Leveraging hybrid cloud and on-premises solutions can help manage costs and scale resources more effectively.
• Develop and Adopt New Architectures: Exploring new HPC architectures, such as accelerated computing and quantum computing, can address some of the limitations of current systems.
• Improve Software and Tools: Developing more user-friendly software and tools for HPC, including AI-powered automation and simplified interfaces, can reduce the barrier to entry.
• Invest in Education and Training: Supporting workforce development through training programs and educational initiatives can help address the skills gap in HPC.
• Promote Collaboration: Fostering collaboration between academia, industry, and government can help accelerate innovation and address the challenges of HPC more effectively.

- HPC Architecture

High-performance computing (HPC) is the practice of aggregating computing resources to achieve performance that is higher than that of a single workstation, server, or computer. HPC can take the form of a custom-built supercomputer or a cluster of multiple independent computers. HPC can be run on-premises, in the cloud, or a mix of both.

Each computer in a cluster is often called a node, and each node is responsible for a different task. Controller nodes run basic services and coordinate work between nodes; interactive or login nodes act as hosts to which users log in through a graphical user interface or command line; and compute or worker nodes perform computations.

Algorithms and software run in parallel on each node of the cluster to help perform its designated tasks. HPC typically consists of three main components: compute, storage, and networking.

In HPC architecture, a group of computers (nodes) collaborate to perform shared tasks. Each node in the structure accepts and processes tasks and computations independently. Nodes coordinate and synchronize tasks, ultimately producing a combined result.

HPC architecture has mandatory and optional components. The mandatory components are: compute, storage, and network. The optional components are: GPU-accelerated systems, data management software, and infiniBand switch.

The three main components of HPC systems are: processor, accelerator, and networking connectivity.

High-bandwidth memory is another critical consideration. The successful HPC architecture must have fast and reliable networking, whether for ingesting external data, moving data between computing resources, or transferring data to or from storage resources.

Storage in an HPC system will function relatively fast to meet the needs of HPC workloads.

- To Build a HPC Architecture

HPC solutions have three main components: Compute, Network, Storage. To build a HPC architecture, compute servers are networked together into a cluster. An HPC cluster consists of hundreds or thousands of compute servers that are networked together. Each server is called a node. The nodes in each cluster work in parallel with each other, boosting processing speed to deliver high performance computing.

Software programs and algorithms are run simultaneously on the servers in the cluster. The cluster is networked to the data storage to capture the output. Together, these components operate seamlessly to complete a diverse set of tasks.

To operate at maximum performance, each component must keep pace with the others. For example, the storage component must be able to feed and ingest data to and from the compute servers as quickly as it is processed. Likewise, the networking components must be able to support the high-speed transportation of data between compute servers and the data storage. If one component cannot keep up with the rest, the performance of the entire HPC infrastructure suffers.

[The Château de Saumur, France]

- HPC in the Data Center

HPC combines hardware, software, systems management and data center facilities to support a large array of interconnected computers working cooperatively to perform a shared task too complex for a single computer to complete alone.

Some businesses might seek to lease or purchase their HPC, and other businesses might opt to build an HPC infrastructure within their own data centers.

Distributed HPC architecture poses some tradeoffs for organizations. The most direct benefits include scalability and cost management. Frameworks like Hadoop can function on just a single server, but an organization can also scale them out to thousands of servers.

This enables businesses to build an HPC infrastructure to meet its current and future needs using readily available and less expensive off-the-shelf computers. Hadoop is also fault-tolerant and can detect and separate failed systems from the cluster, redirecting those failed jobs to available systems.

Building an HPC cluster is technically straightforward, but HPC deployments can present business challenges. Even with the ability to manage, scale and add nodes over time, the cost of procuring, deploying, operating and maintaining dozens, hundreds or even thousands of servers - along with networking infrastructure to support them - can become a substantial financial investment.

Many businesses also have limited HPC needs and can struggle to keep an HPC cluster busy, and the money and training a business invests in HPC requires that deployment to work on business tasks to make it worthwhile.

- Top Considerations for HPC Infrastructure in the Data Center

HPC is a combination of hardware, software, systems management, and data center facilities that enables a group of computers to work together to complete a complex task. HPC can be a custom-built supercomputer or a cluster of individual computers.

Some businesses may choose to lease or purchase their HPC, while others may build an HPC infrastructure within their own data centers.

Here are some things to consider when deciding whether HPC is right for your business:

• Finance: When acquiring new hardware, you can consider buying outright, hire purchase, or leasing.
• HPC workload: A typical HPC workload can place significant demands on the compute hardware and infrastructure that supports it.
• Application requirements: Your application may require a low latency network or access to high performance storage.

Some benefits of leasing IT equipment include: access to the latest technology, predictable monthly expenses, no upfront costs, and Keeping up with competitors.

However, leasing can cost more in the long run, and you may have to pay even if you don't use the technology.
