Multi-cell Cooperation and interference Management

- Overview

5G and beyond multi-cell cooperation and interference management involve techniques like Coordinated Multipoint (CoMP) to manage interference by having base stations share information and coordinate transmissions.

This is crucial for 5G's goals of high data rates, low latency, and massive connectivity, as it reduces interference, improves performance, and enables seamless service across multiple cells, including those with mixed priorities.

Key technologies and strategies include Inter-cell Interference Coordination, coordinated scheduling, and advanced air-interface techniques.

A. Multi-cell cooperation techniques:

1. Coordinated Multipoint (CoMP): Multiple base stations (e.g., macrocells, small cells) cooperate to serve a single user, especially those near cell edges.

• Centralized CoMP: A central unit uses channel state information (CSI) from user equipment (UE) to schedule resources for all cells in a cluster.
• Distributed CoMP: Cells exchange data and CSI directly over a signaling network.

2. Coordinated Scheduling: Base stations coordinate their scheduling decisions to avoid conflicts and minimize interference.

3. Inter-Cell Interference Coordination (ICIC): Techniques that allow cells to coordinate their resource allocation to reduce interference between them.

B. Interference management strategies:

• Network-side and UE-side management: Both the network infrastructure and the user devices implement methods to manage and mitigate interference.
• Multi-tier networks: A key challenge for 5G is managing interference in complex, multi-tier networks that combine macrocells, small cells (like picocells and femtocells), and other components like D2D links.
• Prioritized schemes: New interference management schemes are needed for 5G that can handle users with different priorities, such as those needing ultra-reliable low-latency communication versus high-bandwidth users.
• Advanced air-interface techniques: Innovations in the radio interface itself are used to reduce interference.

C. Key technologies and goals:

1. 5G use cases: Cooperation and interference management are essential for meeting 5G's diverse use cases, including:

• Enhanced Mobile Broadband (eMBB): Higher data rates.
• Ultra-Reliable Low-Latency Communication (URLLC): Critical for applications like autonomous vehicles.
• Massive Machine-Type Communication (mMTC): Connecting a vast number of devices.

2. Beyond 5G: Future networks will build on these techniques to achieve even greater performance, connectivity, and reliability.

Please refer to the following for more information:

• Wikipedia: Inter-cell interference coordination

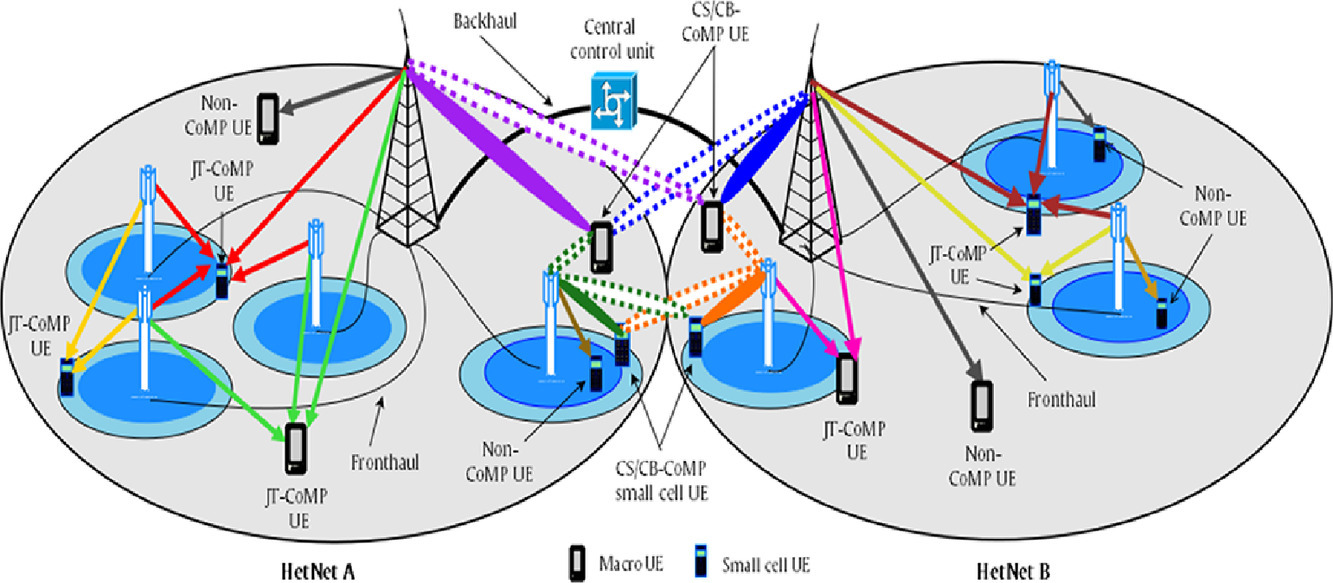

- Heterogeneous 5G Networks (HetNets)

One of the primary goals of 5G is to provide solutions to address the growing number of users and increasing bandwidth demands.

There are currently two main approaches to achieving this goal. The first approach is to deploy low-power 5G base stations (pico-cells, femto-cells, small-cells) that overlay macrocell networks and share their licensed spectrum. In this hierarchical architecture, traffic can be offloaded from macrocells to femtocells/small cells.

The second approach is to offload traffic from cellular networks to other networks: Wi-Fi networks, low Earth orbit (LEO) satellites, low-power wide-area (LPWA) networks, etc.

These heterogeneous 5G networks (HetNets), whether they combine different radio access technologies (cellular, satellite, Wi-Fi, etc.) or different types of devices (pevic cells, femtocells, small cells, macrocells, etc.), have the potential to significantly improve network capacity.

[More to come ...]
