Internet Backbone Technology

The Internet Backbone_091623A

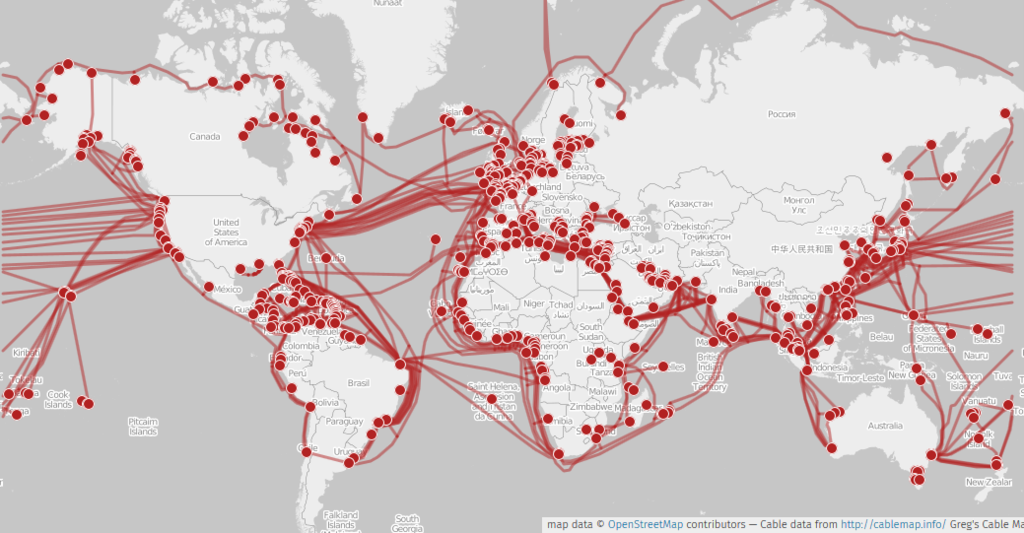

[The Internet Backbone: Routing of prominent undersea cables that serve as the physical infrastructure of the Internet - Wikipedia]


- Overview

The internet backbone is essentially the high-speed network that acts as the central hub, connecting various Internet Service Providers (ISPs) and allowing them to communicate with each other across the globe, essentially functioning like the "highway system" of the internet, ensuring fast and reliable data transmission over long distances; it is composed of the largest and fastest networks and is designed to handle high volumes of data with minimal downtime.

Key points about the internet backbone:

  • Function: It connects ISPs to each other, enabling them to provide internet access to users around the world.
  • Structure: The backbone consists of a network of high-capacity fiber-optic cables and advanced routers, managed by large telecommunications companies called Tier 1 providers.
  • Reliability: The backbone is designed to be highly reliable with redundancy measures in place to ensure minimal downtime in case of network failures.
  • Tier 1 providers: These are the largest companies operating on the backbone, including giants like AT&T, Verizon, and Sprint, who often sell services to smaller ISPs.
  • Global reach: The backbone spans across the globe, connecting different countries and regions through undersea cables.



Please refer to the following for more information:



- The Internet Backbone Connecting Internet Service Providers (ISPs)

An Internet backbone is a high-speed network that connects Internet service providers (ISPs) to other networks around the world. It's like the internet's highway system. The backbone is the core of the network and consists of the largest and fastest networks.

The backbone connects local area networks (LANs) and wide area networks (WANs) together. The backbone network is designed to maximize the reliability and efficiency of large-scale, long-distance data communications. It enables backup networks to take on the load of one or more failed networks.

The world's largest providers (called Tier 1 providers) have networks that span the globe. These providers include large telecommunications companies like AT&T, Verizon, and Sprint. They sell services to smaller ISPs and are also ISPs themselves.

Each country typically has multiple backbone networks connecting all of its ISPs. In the United States, these backbone networks are connected through a small number of interconnection points.



- The Internet Backbone Network

The Internet backbone is the core infrastructure of the internet, consisting of high-speed, high-capacity networks that connect major regional and international networks. These networks, owned by various entities, utilize fiber optic cables and powerful routers to enable global data exchange, making it the foundation for most online activities.

Key characteristics:

  • High-speed and high-capacity: Backbone networks are built with the fastest routers and fiber optic cables to handle large volumes of data traffic.
  • Global reach: Backbone networks connect major networks across continents, enabling global communication and data exchange.
  • Owned by various entities: Commercial, educational, governmental, and military organizations all operate and maintain portions of the backbone.
  • Essential for online activity: Most web browsing, streaming, and other online activities rely on the backbone network for data transmission.
  • Tier 1 ISPs: Several major internet service providers (ISPs) operate and maintain segments of the backbone network.
  • Routers and Protocols: The backbone utilizes powerful routers and protocols like BGP (Border Gateway Protocol) to direct data traffic efficiently, according to www.eitc.org.
  • Redundancy: Backbone networks are designed with redundancy to ensure continued operation even if parts of the network fail.
  • Internet Exchange Points (IXPs): IXPs are locations where different backbone networks connect and exchange data.



- The Internet in Data Communications

The internet is a vast global network that connects computers and other devices, enabling the quick transfer of information and files using the Transmission Control Protocol (TCP) standard, facilitating various forms of communication like email, social media, and video calls, ultimately making communication faster and more efficient compared to traditional methods.

Key points about the internet in data communications:

  • Global network: The internet spans the globe, connecting billions of devices across different countries and regions.
  • TCP protocol: The internet relies on the Transmission Control Protocol (TCP) to ensure reliable data transmission by breaking down information into packets and managing their delivery.
  • Communication methods: The internet supports various communication methods including email, instant messaging, social media platforms, video conferencing, and online forums.
  • Efficiency and speed: The internet has significantly improved communication speed and efficiency by enabling near-instantaneous information exchange compared to traditional means.
  • Collaborative work: The internet allows people to collaborate remotely, working on projects together regardless of their physical location.



- Data Transmission over The Internet

Data transmission over the internet involves breaking down data into packets, which are then routed across networks using protocols like TCP/IP.

These packets travel through various devices like routers and switches until they reach their destination, where they are reassembled. This process ensures reliable and efficient transfer of information across the internet.

Key characteristics:

1. Data Segmentation and Packetization:

The data to be transmitted is divided into smaller, manageable units called packets.
Each packet contains a header with addressing and control information, the actual data (payload), and a trailer with error-checking codes.

2. Routing and Transmission:

  • IP addresses are used to identify the source and destination of each packet.
  • Routers and switches forward packets across the network based on their IP addresses.
  • The Internet Protocol (IP) governs how packets are routed, while protocols like TCP ensure reliable and ordered delivery.


3. TCP and UDP:

  • TCP (Transmission Control Protocol): Provides reliable, ordered, and error-checked data delivery. It uses acknowledgments and retransmissions to ensure packets arrive correctly.
  • UDP (User Datagram Protocol): A simpler protocol that prioritizes speed over reliability. It's often used for streaming media and online gaming where minor data loss is acceptable.


4. Data Reassembly:

  • At the destination, the packets are reassembled in the correct order based on the information in their headers.
  • Error detection codes in the trailer help ensure the integrity of the reassembled data.


5. Internet Protocols:

  • The TCP/IP model is the foundation of internet communication.
  • This model includes various protocols, each with specific functions, to handle different aspects of data transmission.
  • Data encapsulation, where each layer adds its header information, is a crucial part of the process.



- How Data is Transmitted over the Internet

Data transmitted over the internet is converted into electrical or light pulses (bits), broken down into packets, and sent across networks in a series of hops, ultimately reassembled at the destination.

Multipath transmission, data encryption, and source IP masking enhance speed and security.

Key characteristics:

1. Conversion to Bits:

  • Data, whether it's text, images, or videos, is converted into a series of electrical or light pulses, also known as "bits".
  • These pulses are the fundamental units of information that travel across the internet's infrastructure.


2. Packetization:

  • Before transmission, data is divided into smaller packets.
  • Each packet contains a header with information about the data's origin and destination, allowing it to be routed correctly.


3. Routing and Hops:

  • Packets travel through the network, hopping from one device (like a router) to another, including local Internet Service Providers (ISPs).
  • The packets can take different paths to reach the destination.


4. Reassembly:

  • Once all the packets arrive at the destination device, they are reassembled into the original message.


5. Enhancements:

  • Multipath Transmission: Data packets can be sent simultaneously along multiple routes, significantly increasing transmission speed and efficiency.
  • Data Encryption: Encrypting data adds a layer of security, protecting it from unauthorized access.
  • Source IP Masking: Masking the source IP address further enhances security by concealing the origin of the data.



The University of Chicago_050723A
[The University of Chicago]

- Security at the Core of the Internet

The internet backbone, consisting of high-capacity cables and routers, is crucial for global communication, but its location and details are often kept secret due to security concerns. While the internet is publicly accessible, it relies on privately owned networks, and even though some companies share network schematics, they rarely include precise geographic information.

Understanding the location of these critical infrastructure components is vital for assessing vulnerabilities to both natural disasters and malicious attacks.

Key characteristics:

  • Central Role: The internet backbone acts as the foundational infrastructure, facilitating high-speed data transmission across vast distances with low latency and high reliability.
  • Security Concerns: Because of its critical function, the backbone is a prime target for attacks, prompting providers to maintain secrecy regarding specific locations and technical details.
  • Private Ownership: The internet is a network of interconnected private networks, which adds complexity to the infrastructure and security considerations.
  • Limited Geographic Information:
  • While some companies share network schematics, these often lack specific geographic data, making it difficult to assess the potential impact of disruptions.
  • Importance of Understanding: Knowing the exact locations of key internet cables is essential for understanding how natural disasters or attacks could affect the internet's functionality.
  • Need for Resilience: The ability to anticipate and mitigate potential disruptions is crucial for maintaining a resilient and reliable internet.





[More to come ...]
