Internet Protocol Suite and Data Transmission

Networking In The Digital Age

- Overview

The TCP/IP model is the foundation for internet communication, enabling devices to exchange data reliably and efficiently.

The Internet Protocol Suite, also known as TCP/IP, is a set of communication protocols that enables data transmission across networks, including the internet. It provides the rules and standards for how devices packetize, address, route, and receive data, ensuring reliable and efficient communication.

The key aspects:

1. What it is:

• Foundation of the internet: TCP/IP is the core protocol suite that underpins the internet and most local area networks.
• Layered architecture: The suite is organized into four layers: Link, Internet, Transport, and Application, each handling specific tasks.
• Key protocols: While it encompasses many protocols, TCP (Transmission Control Protocol) and IP (Internet Protocol) are fundamental.

2. How it works:

• Data is packetized: Data is broken down into smaller packets for transmission.
• IP addresses: Each device on the network has a unique IP address for routing packets.
• Routing: The Internet Protocol (IP) handles routing, directing packets to their destination based on IP addresses.
• Reliable delivery: TCP ensures reliable and ordered delivery of data, handling retransmissions if needed.

3. Key functionalities:

• Addressing and routing: IP handles the addressing and routing of packets to their destination.
• Data transmission: TCP provides reliable data transfer between applications.
• Network communication: TCP/IP enables communication between devices on the internet and other networks.

4. Why it's important:

• Interoperability: TCP/IP allows devices from different manufacturers and networks to communicate.
• Scalability: The suite is designed to handle the growth and complexity of modern networks.
• Reliability: TCP/IP is designed to be robust and automatically recover from network issues.
• Ubiquity: It's a foundational technology for the internet and other networks, enabling communication and data exchange.

- TCP/IP Protocol Stack

The Internet protocol suite is the conceptual model and set of communications protocols used in the Internet and similar computer networks. It is commonly known as TCP/IP because the foundational protocols in the suite are the Transmission Control Protocol (TCP) and the Internet Protocol (IP).

The Internet protocol suite provides end-to-end data communication specifying how data should be packetized, addressed, transmitted, routed, and received.

This functionality is organized into four abstraction layers, which classify all related protocols according to the scope of networking involved.

From lowest to highest, the layers are the link layer, containing communication methods for data that remains within a single network segment (link); the internet layer, providing internetworking between independent networks; the transport layer, handling host-to-host communication; and the application layer, providing process-to-process data exchange for applications.

The four layers:

1. Link Layer: This layer manages communication within a single network segment, handling the physical transmission of data.
2. Internet Layer: This layer provides internetworking, enabling communication between different networks by handling addressing and routing of data packets, primarily using the Internet Protocol (IP).
3. Transport Layer: This layer is responsible for host-to-host communication, ensuring reliable and ordered delivery of data, often using the Transmission Control Protocol (TCP).
4. Application Layer: This layer provides the interface for user applications to access network services, handling process-to-process communication and specific protocols like HTTP, SMTP, and FTP.

- TCP/IP: Not the Most Secure Protocol

While TCP/IP is the most common and widely used protocol suite on the internet, it is not inherently secure. Packets sent over TCP/IP can be intercepted or seen by others, making it risky to transmit sensitive information over public Wi-Fi networks without encryption. Using a VPN can help encrypt data and improve security when using TCP/IP.

Key concepts:

• TCP/IP's ubiquity: TCP/IP is the foundation of the internet, enabling communication between devices. Its widespread use means it's often the default protocol without requiring manual setup.
• Lack of built-in security: TCP/IP was designed for basic data transmission and doesn't inherently protect data from being intercepted or viewed. This means that if you're using a public Wi-Fi network, anyone with the right tools could potentially access your data if it's not encrypted.
• Importance of encryption: To mitigate the security risks associated with TCP/IP, it's crucial to encrypt sensitive data before sending it.
• VPNs as a solution: A VPN creates a secure, encrypted tunnel between your device and the internet, masking your IP address and encrypting your data. This provides an extra layer of security when using TCP/IP, especially on public networks, according to security experts.

- TCP/IP Transport Mechanism

The TCP/IP model has four layers: network access layer, Internet layer, transport layer, and application layer. These layers used together are a set of protocols. When a user sends information, the TCP/IP model passes data through these layers in a specific order, and then again in reverse order when receiving data.

When data moves from upper layer to lower layer of TCP/IP protocol stack, during an outgoing transmission, each layer includes a bundle of relevant information called "header" along with the actual data.

The data package containing the header and the data from the upper layer then becomes the data that is repackaged at the next lower level with lower layer's header.

Header is the supplemental data placed at the beginning of a block of data when it is transmitted. This supplemental data is used at the receiving side to extract the data from the encapsulated data packet. This packing of data at each layer is known as data encapsulation.

Key characteristics:

• Layered Architecture: The TCP/IP model is structured into four layers: network access, internet, transport, and application.
• Data Flow: When a user sends data, it moves down through these layers. Each layer adds its own header to the data, essentially wrapping the data in a new layer of information.
• Data Encapsulation: This process of adding headers at each layer is known as data encapsulation, according to the TCP/IP model description.
• Header Purpose: The header contains control information, such as addressing and error detection data, that is crucial for the receiving end to correctly interpret and process the data.
• Reverse Process: When data is received, it moves up through the layers. Each layer strips off its corresponding header, revealing the data from the layer below, until it reaches the application layer.
• Example: Imagine sending a letter. The application layer might be like writing the letter itself. The transport layer could be like putting the letter in an envelope (adding a header). The internet layer might add a shipping label (another header). The network access layer might put it in a box (yet another header). At the receiving end, each layer would unpack the data, revealing the letter inside.

- Ethernet Data Transmission Mechanism

In Ethernet data transmission, the Internet Protocol (IP) and Transmission Control Protocol (TCP) work together, with IP handling addressing and routing, while TCP ensures reliable data delivery. IP gets the destination address, and TCP manages the actual sending and receiving of data, often with the support of UDP for certain applications. These protocols are encapsulated within Ethernet frames, where the IP packet becomes the payload.

TCP and IP are independent computer network protocols. The difference between TCP and IP is their role in the data transmission process. IP gets the address from which data is sent. Once the IP address is found, TCP ensures accurate data delivery. Together they form the TCP/IP protocol suite.

In other words, IP sorts the mail and TCP sends and receives the mail. Although these two protocols are often considered together, other protocols, such as UDP, can send data within an IP system without using TCP. But TCP requires an IP address to send data. This is another difference between IP and TCP.

if we want to send an IP packet (layer 3) out on an Ethernet network (layers 1 and 2), we need to send out an Ethernet packet (an Ethernet NIC or transceiver knows nothing about IP). The entire IP packet becomes the payload (data) of an Ethernet packet. Similarly, TCP and UDP, layers above IP, have their own headers, distinct from IP headers (they need a port number, for example).

A TCP or UDP packet is likewise treated simply as data by the IP layer. This wrapping process is known as protocol encapsulation. Each layer of the networking stack can ignore the headers outside of its layer and treat anything from higher layers simply as part of the payload that needs to be sent.

Key characteristics:

• IP and TCP's Roles: IP is responsible for identifying the destination device using its IP address, while TCP ensures reliable and ordered delivery of data. Think of IP as addressing the mail and TCP as ensuring the mail is sent and received correctly, according to Fortinet.
• Encapsulation: When sending data, higher-level protocols like TCP or UDP are encapsulated within IP packets, which are then encapsulated within Ethernet frames. This means that the IP packet becomes the data portion of the Ethernet frame.
• Layered Approach: Each layer in the network stack (physical, data link, network, transport, etc.) essentially treats the data it receives from higher layers as a payload, adding its own header information and passing it down to the next layer. This process is called protocol encapsulation.
• Ethernet and IP: Ethernet, primarily operating at the physical and data link layers, doesn't inherently understand IP addresses. An Ethernet frame encapsulates the entire IP packet, including its header and data.
• TCP and UDP: TCP, a connection-oriented protocol, provides reliable, ordered delivery with error checking, while UDP, a connectionless protocol, prioritizes speed and is less reliable. Both protocols operate above IP and have their own header information beyond the IP header.

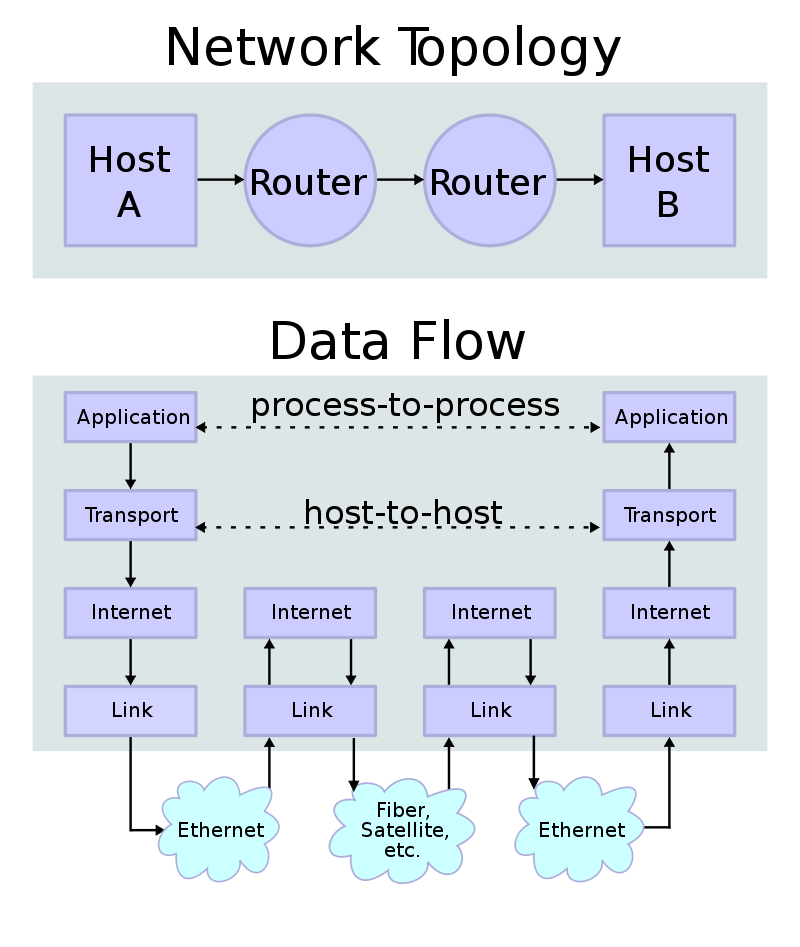

(IP Stack Connection - Wikipedia)

- TCP/IP and Global Internet Backbone

The Internet backbone, comprised of interconnected networks, utilizes TCP/IP to facilitate global data exchange. Tier 1 ISPs, like AT&T and Verizon, own these networks and connect at Internet Exchange Points (IXPs) through settlement-free peering, ensuring efficient traffic delivery worldwide.

The Internet generates massive amounts of computer-to-computer traffic, and insuring all that traffic can be delivered anywhere in the world requires the aggregation of a vast array of high-speed networks collectively known as the Internet backbone.

In computer networking, a backbone is a central conduit designed to transfer network traffic at high speeds. Backbones connect local area networks (LANs) and wide area networks (WANs) together. Network backbones are designed to maximize the reliability and performance of large-scale, long-distance data communications. The best-known network backbones are those used on the Internet.

The Internet backbone is made up of many large networks which interconnect with each other. The individual core networks are privately owned by Tier 1 internet service providers (ISP), giant carriers whose networks are tied together. These providers include AT&T, Verizon, Comcast, Sprint, etc..

By joining these long-haul networks together, Tier 1 ISPs create a single worldwide network that gives all of them access to the entire internet routing table so they can efficiently deliver traffic to its destination through a hierarchy of progressively more local ISPs. In addition to being physically connected, these backbone providers are held together by a shared network protocol, TCP/IP.

Internet exchange points (IXP) tie the backbone together. Backbone ISPs connect their networks at peering points, neutrally owned locations with high-speed switches and routers that move traffic among the peers. These are often owned by third parties, sometimes non-profits, that facilitate unifying the backbone.

Participating Tier 1 ISPs help fund the IXPs, but don’t charge each other for transporting traffic from the other Tier 1 ISPs in a relationship known as settlement-free peering. Such agreements eliminate potential financial disputes that might have the result of slowing down internet performance.

Key concepts:

• The Internet Backbone: The internet backbone is a high-speed network infrastructure that forms the core of the internet, connecting various networks across the globe.
• Tier 1 ISPs: These are major players in the internet infrastructure, owning and operating the core networks that make up the backbone. They interconnect with each other, forming a global network.
• TCP/IP: This is the fundamental protocol suite that enables communication between different networks and devices on the internet. It ensures that data is properly formatted, addressed, and routed across the network according to Cloudflare.
• Internet Exchange Points (IXPs): IXPs are neutral locations where different networks, particularly those operated by Tier 1 ISPs, connect and exchange traffic. This allows for efficient data transfer without relying on a single central authority according to the Internet Society.
• Settlement-Free Peering: This arrangement among Tier 1 ISPs means they don't charge each other for traffic exchange at IXPs. This eliminates potential disputes and speeds up data transmission.

-  IP Convergence in the Telecom Industry

IP convergence, driven by the increasing use of IP-based technologies, is transforming the telecommunications industry. Ethernet, with its advantages, is expanding beyond LANs to become a leading technology in MANs, while ongoing development focuses on improved bandwidth, QoS, reliability, and manageability. This trend is prompting global discussion about the roles and responsibilities of stakeholders in the evolving network landscape.

The use of Internet Protocol (IP)-based technologies is now a strategic element in the design, development and use of telecommunication networks. As IP technology is gradually replacing traditional technologies, the trend of a full IP network is irresistible.

Enjoying the innate advantage of convergence with IP, Ethernet gradually goes beyond the applications within Local Area Networks (LAN) by virtue of its advantages such as better price-performance ratio per Mb bandwidth, simple management, flexible service loading, and low cost, and has become one of the leading networking technologies for Metropolitan Area Networks (MANs).

On the one hand, the development of Ethernet technologies is reflected by the rate improvement from 10 Mb/s to 400 Gb/s; on the other hand, it is reflected by enhanced performance. New technologies for Quality of Service (QoS) guarantee, reliability and manageability are constantly emerging.

As the use of IP-based networks, including the Internet, continues to grow around the world, global dialogue on the roles and responsibilities of all stakeholders involved in the dissemination, innovation and use of these networks intensifies.

The Internet and the applications it supports have become of crucial importance to the economic, social and political development of all countries, in particular developing countries, as the global community seeks to use the Internet and other ICTs as a way to help provide digital opportunities for all.

Key characteristics:

• IP as a Foundation: IP technology is becoming the cornerstone of telecommunications networks, replacing older technologies in a move towards full IP networks.
• Ethernet's Expansion: Ethernet, with its strengths in cost, management, and flexibility, is extending its reach from LANs to MANs.
• Evolving Ethernet Technology: Ethernet is seeing significant advancements in bandwidth (from 10 Mb/s to 400 Gb/s) and performance, with new technologies emerging for QoS, reliability, and management.
• Global Dialogue: The growing reliance on IP-based networks, including the Internet, is sparking global conversations about the responsibilities of all parties involved in their use and development.
• Importance of the Internet: The Internet and its applications are increasingly vital for global economic, social, and political progress, especially for developing countries.

[More to come ...]
