- Overview
Free-space Optics (FSO) is a line-of-sight laser/LED wireless tech for fiber-speed data (Gbps) between buildings or satellites, offering quick, cable-free, secure, license-free links but requiring clear paths and facing weather disruption (fog, rain).
FSO differs from Visible Light Communication (VLC) by focusing on long-distance, point-to-point connections (like a wireless fiber) rather than using ambient light for illumination, providing high-bandwidth alternative for last-mile access or backup.
1. Key Characteristics:
- Technology: Uses modulated light (lasers/LEDs) to send data through the atmosphere.
- Performance: Offers fiber-like speeds (Gbps) and high bandwidth.
- Deployment: Quick, cost-effective alternative to trenching fiber, especially for difficult locations.
- Security: Very secure as interception requires disrupting the direct line-of-sight beam.
- Spectrum: License-free, avoiding RF spectrum issues.
- Requirements: Needs a clear, unobstructed line of sight (LOS).
- Challenges: Atmospheric conditions (fog, rain, smoke) can degrade or block the signal.
2. FSO vs. VLC:
- FSO: Dedicated, narrow beams for long-distance, high-bandwidth, point-to-point links, like wireless fiber.
- VLC: Often uses ambient room light (LEDs) to transmit data, focusing on indoor illumination and data transfer simultaneously (LiFi).
- The Fundamental Principle of FSO
Free-space optical (FSO) communication is a technology that transmits data through the atmosphere using modulated visible or infrared (IR) light generated by light-emitting diodes (LEDs) or lasers.
1. Principle of Operation:
The fundamental principle of FSO communication is the establishment of a line-of-sight (LOS) data link between two points without using a physical medium like fiber optic cable.
The key components and processes involved are:
- Transmitter: A source, typically a laser or LED, converts the message signal (data) into modulated light beams.
- Atmospheric Channel: The light beam travels through the open atmosphere (the "free space") to the receiver. This path is susceptible to environmental factors such as fog, rain, snow, and atmospheric turbulence, which can attenuate or distort the signal.
- Receiver: A photodetector at the destination captures the incoming light signal and converts it back into an electrical signal (the original data).
- Free-Space Optics (FSO) Technology
Free-Space Optics (FSO) is a line-of-sight wireless communication technology that transmits data using light beams through the atmosphere instead of physical cables.
1. Technology:
- Medium: Uses infrared (IR) or visible light beams to send data through air, vacuum, or outer space.
- Light Sources: Typically utilizes focused lasers for high-speed transmission, though LEDs can be used for shorter, lower-rate links.
- Topology: Primarily functions as point-to-point (PTP) links requiring a direct line-of-sight between transceivers.
- Performance: Capable of fiber-like speeds, ranging from 100 Mbps to 40 Gbps, with laboratory speeds exceeding 160 Gbps.
2. Applications:
- Last-Mile Access: Connects end-users to service provider backbones where laying fiber is difficult or expensive.
- Building Connectivity: Interconnects LAN segments in separate buildings, such as corporate or university campuses.

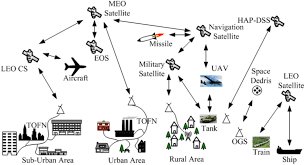

- Satellite Communications: Facilitates high-speed inter-satellite links and ground-to-space communications for global broadband.
- Network Backhaul: Carries data traffic between cellular towers (4G/5G) and the public network.
- Backup Links: For disaster recovery when fiber is cut.
3. Key Difference from VLC:
- Range: FSO is designed for longer distances (hundreds of meters to thousands of kilometers), whereas Visible Light Communication (VLC) is typically for short-range indoor use.
- Illumination: VLC dual-purposes light for both illumination and data, while FSO beams are often invisible (infrared) and do not serve a lighting purpose.
- Network Layer: FSO often acts as a backbone or backhaul layer; VLC typically serves as an access layer for end-user devices.
