Geothermal Energy

- Overview

Geothermal energy is a renewable, reliable, and baseload power source derived from heat stored beneath the Earth's surface, often used for electricity generation, direct heating, and cooling.

By tapping into high-temperature underground reservoirs, it offers a nearly 90% capacity factor, providing continuous power, though it faces high upfront drilling costs and geographic limitations.

(A) How Geothermal Energy Works:

1. Generation: Wells are drilled deep underground (up to several miles) to tap into steam or hot water. This thermal fluid drives turbines in power plants to produce electricity.

2. Types of Systems:

• Dry Steam Plants: Use hydrothermal steam directly.
• Flash Plants: Take high-pressure hot water into cooler, low-pressure tanks, causing it to flash into steam.
• Binary Cycle Plants: Pass moderately hot geothermal water by a secondary fluid with a lower boiling point, causing it to flash to vapor for the turbine.

3. Direct Use: Hot water from springs or shallow wells can be used directly for district heating, greenhouses, and aquaculture.

(B) Advantages:

• Renewable & Sustainable: Heat is continually produced by the Earth's core, ensuring an inexhaustible supply.
• Reliable Baseload Power: Unlike wind or solar, geothermal provides consistent, 24/7 power, often with a ~90% capacity factor.
• Low Emissions: Geothermal power plants have low greenhouse gas emissions.
• Small Footprint: These plants require minimal land compared to other energy sources.

(C) Disadvantages:

• High Initial Costs: Drilling accounts for 30%–57% of costs, with high-risk, expensive exploration, often costing $2–5 million per MW.
• Location Specific: Prime, cost-effective locations are generally limited to tectonic plate boundaries.
• Environmental Concerns: Potential for surface instability (subsidence) and, in rare cases, induced seismicity from fluid injection.

(D) Usage and Location:

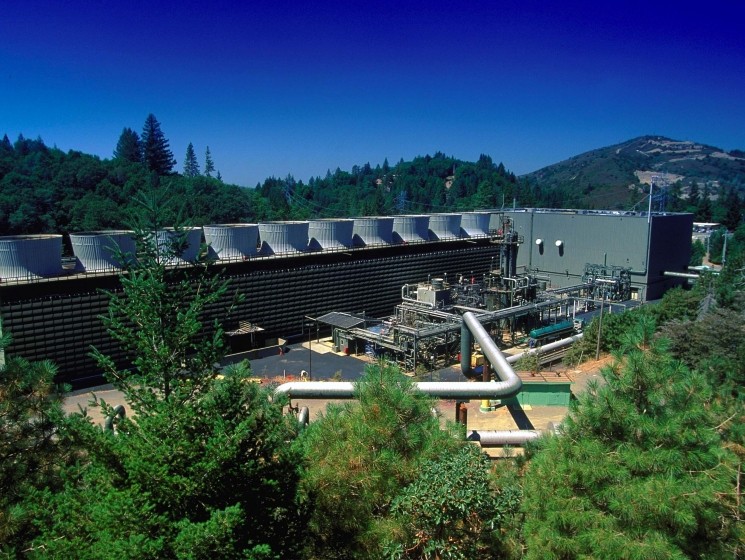

• Major Locations: The Geysers in California is the most developed field. Other major, high-temperature resources are found in Iceland, the Philippines, and New Zealand.
• Applications: It provides electricity in several countries, including the U.S., where it contributes significantly along the California coast. It is also widely used for residential heating in countries like Iceland.

Please refer to the following for more information:

• Wikipedia: Geothermal Energy

- Obtaining and Utilizing Geothermal Energy

Geothermal energy, derived from the Greek words for "earth" and "heat," is a renewable, environmentally friendly energy source from the Earth's continuous heat production.

It is harnessed by drilling wells to tap underground steam or hot water to generate electricity,, heat buildings, or power industrial processes.

1. Obtaining and Utilizing Geothermal Energy:

• Deep Reservoirs: Wells are drilled into deep underground reservoirs to access steam or hot water, which is then used to drive turbines for electricity generation.
• Geothermal Heat Pumps: Shallow ground, which maintains a relatively constant temperature of 50°–60°F, is used to heat and cool buildings.
• Direct Use: Hot water directly from the ground is used for bathing, agriculture, and industrial heating.
• Sustainability: After use, the geothermal fluids are often reinjected back into the reservoir to maintain pressure.

2. Key Aspects of Geothermal Energy:

• Renewable Source: Heat is continuously produced inside the Earth, making it a reliable, sustainable resource.
• Environmental Impact: While cleaner than fossil fuels, it can release small amounts of gas during drilling and is location-specific.
• Largest Installation: The Geysers Geothermal Complex in California is the world's largest, serving five counties.
• Diverse Application: It is utilized for electricity, space heating, and industrial applications.

- The Main Advantages of Geothermal Energy

Geothermal energy offers a highly reliable, 24/7 renewable power source with a small surface footprint and long-lasting, durable infrastructure (80–100 year lifespan for plants). It is versatile for both large-scale power generation and small-scale heating/cooling, with an expanding, sustainable industry.

Key Limitations: Despite these benefits, projects are geographically constrained to certain locations, require high initial capital investment for drilling, and carry risks of surface instability.

Five key benefits of geothermal energy:

• Reliable Power Supply: Unlike solar or wind, geothermal provides baseload power, operating 24/7 regardless of weather conditions.
• Small Footprint: Geothermal plants require less land per megawatt (1−8 acres/MW) compared to many other renewable energy sources.
• Versatile Installations: It can be used for large-scale utility electricity or small-scale, localized residential heating and cooling via heat pumps.
• Expanding Industry: As technology improves, the industry is growing, with new techniques allowing for wider, more cost-effective development.
• Long-Lasting Infrastructure: Geothermal power plants and, specifically, ground-source heat pump infrastructure have exceptionally long lifespans, sometimes lasting up to 100 years.

[Geothermal Energy - NASA]

- The Main Limitations of Geothermal Energy

Geothermal energy, while a sustainable, low-emission resource, is heavily constrained by high upfront capital costs for deep-well drilling - often four to six times that of gas plants - and strict, site-specific geographical requirements.

It faces long development times (5–10 years), risk of seismic activity from drilling, and potential environmental issues like greenhouse gas emissions.

Despite these hurdles, geothermal is highly stable for base-load electricity, unlike wind and solar.

The key limitations of geothermal energy:

1. High Upfront Capital Costs: Drilling deep wells into high-temperature, hard rock environments is expensive, with costs often running $2 to $7 million for a single megawatt plant. This high financial risk in exploration and development makes financing challenging compared to other renewables.

2. Location Dependence: Economically viable, high-quality geothermal resources are geographically constrained, usually near tectonic plate boundaries, requiring long-distance transmission from remote, mountainous, or protected areas to load centers.

3. Long Development Times: From exploration to operation, conventional geothermal plants can take 5–10 years to develop, requiring extensive feasibility studies, permitting, and drilling.

4. Environmental and Social Risks:

• Seismic Activity: Subsurface fluid injection for enhanced geothermal systems (EGS) can trigger minor earthquakes.
• Emissions: While low, geothermal plants can emit small amounts of greenhouse gases such as hydrogen sulfide (𝐻2𝑆) and carbon dioxide (𝐶𝑂2).
• Water Consumption: Significant water is required for cooling in some plant designs.

5. Technical Challenges: The corrosive nature of geothermal fluids can damage equipment, requiring specialized materials and increased maintenance costs.

6. Low Thermal Efficiency: Geothermal plants generally have lower thermal efficiency compared to nuclear or fossil fuel plants because the steam temperature is often below 250°C.

[More to come ...]
