The Von Neumann Architecture and Computers

- Overview

The von Neumann architecture is a computer architecture that uses a single address space to store both program instructions and data. This design, developed by John von Neumann, is the foundation for most modern computers.

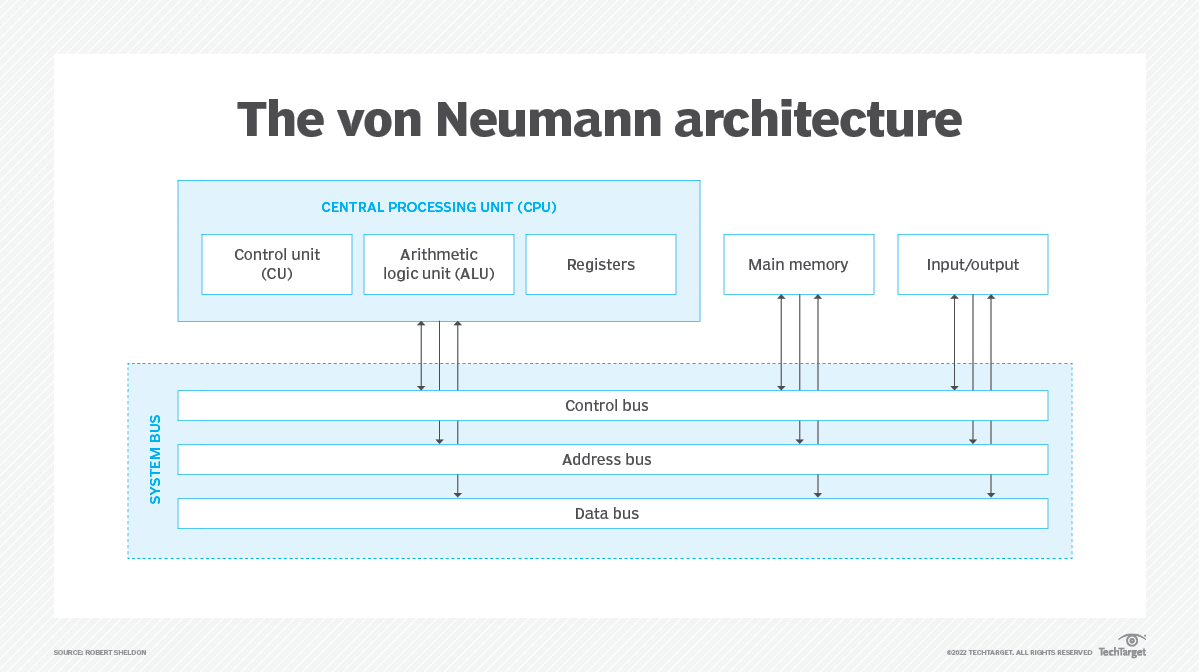

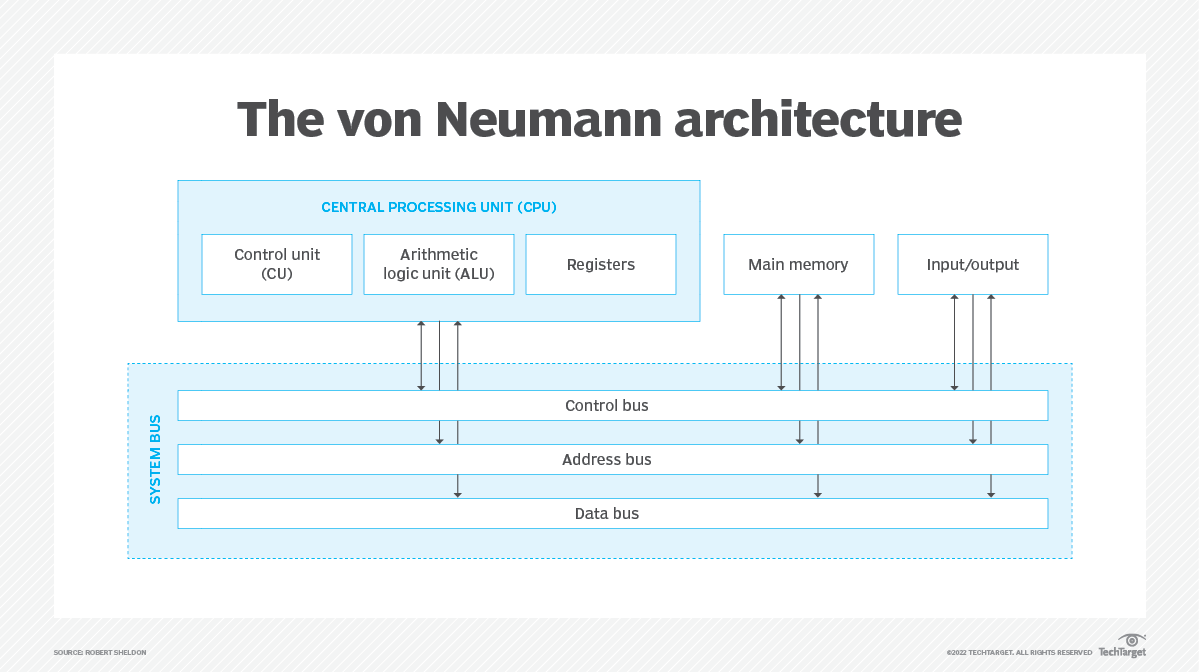

Key components include a Central Processing Unit (CPU), a memory unit, and input/output devices. The CPU fetches instructions and data from the memory, processes them, and stores the results back in memory, using buses to transfer information.

The von Neumann architecture laid the foundation for modern computers, but its limitations have led to ongoing research and development of alternative architectures to address performance and power consumption challenges, according to computer science resources.

The Von Neumann architecture consists of a single, shared memory for programs and data, a single bus for memory access, an arithmetic unit, and a program control unit. The Von Neumann processor operates fetching and execution cycles seriously.

Key Features of Von Neumann Architecture:

• Single Address Space: Instructions and data share the same memory space and can be accessed using the same addressing scheme.
• Stored Program Concept: Programs are stored in memory as a sequence of instructions, allowing for flexibility and easy modification.
• Sequential Processing: Instructions are typically executed one after another, although modern processors may use techniques like pipelining to improve performance.
• Central Processing Unit (CPU): The CPU, consisting of an Arithmetic Logic Unit (ALU) and a control unit, is responsible for fetching, decoding, and executing instructions.
• Memory Unit: Stores both instructions and data, providing a unified storage space.
• Input/Output (I/O) Devices: Enable the computer to interact with the outside world, allowing data to be entered and results to be displayed.

Advantages of Von Neumann Architecture:

• Simplicity and Flexibility: The stored program concept allows for easy modification and updates of software.
• Widely Adopted: The architecture is widely used, making it relatively easy to find compatible hardware and software.

Limitations of Von Neumann Architecture:

• Von Neumann Bottleneck: The sequential nature of instruction processing and the separation of memory and CPU can lead to a bottleneck, as data needs to be transferred back and forth between memory and the CPU.
• Power Consumption: Frequent memory access can contribute to higher power consumption.
• Scalability Issues: The bottleneck can hinder performance in high-performance computing applications.

Alternatives to Von Neumann Architecture:

• Harvard Architecture: Separates instructions and data into different memory spaces, potentially improving performance.
• Modified Harvard Architecture: Uses separate caches for instructions and data to mitigate the bottleneck.
• In-Memory Computing: Aims to perform computations directly within the memory, reducing data movement.

[More to come ...]
