IoV Big Data Architecture

- Overview

Internet of Vehicles (IoV) is the product of the marriage between the automotive industry and IoT. IoV data is expected to get larger and larger, especially with electric vehicles being the new growth engine of the auto market.

Vehicles are quickly becoming centers of digital experience, with wireless, artificial intelligence-inspired customization available on the fly. Furthermore, the desire for self-driving cars creates entirely new requirements for autonomous sensing and communication.

Wireless V2X (vehicle networking) connectivity is a key enabling technology for future cars. This includes vehicle-to-vehicle (V2V), vehicle-to-network (V2N), vehicle-to-infrastructure (V2I) and vehicle-to-pedestrian (V2P) communications.

More recently, manufacturers have entered the market with a variety of models that allow consumers to customize digital and physical functionality, size and appearance. As a result, vehicle-sharing information that makes transportation safer, greener, and more enjoyable is right on our doorstep.

- Controller Area Network (CAN)

The idea of ​​IoV is straightforward: create a network that lets vehicles share information between each other or with city infrastructure. What’s often under-explained is the network inside each car. On every car is something called a controller area network (CAN), which is the communication center for electronic control systems.

For cars on the road, CAN is the guarantee of their safety and functionality because it is responsible for:

• Vehicle system monitoring: CAN is the pulse of the vehicle system. For example, sensors send the temperature, pressure, or position they detect to CAN; controllers issue commands to actuators (such as regulating valves or driving motors) through CAN.
• Real-time feedback: Through CAN, sensors send speed, steering angle, and braking status to controllers, which adjust the car in time to ensure safety.
• Data sharing and coordination: CAN allows data exchange (such as status and commands) between various devices, so the entire system can be more efficient and effective.
• Network management and troubleshooting: CAN monitors devices and components in the system. It identifies, configures, and monitors devices for maintenance and troubleshooting.

With CAN being so busy, you can imagine the amount of data that is transmitted through CAN every day.

- IoV Big Data Processing

The interesting part is turning such a large amount of data into valuable information to guide product development, production and sales.

As with most data analysis workloads, this comes down to data writing and computing, and this is where the challenges lie:

• Large-scale data writing: Sensors are everywhere in cars: doors, seats, brake lights… In addition, many sensors collect more than one signal. 4 million cars add up to millions of TPS of data throughput, which means tens of TB of data per day. This number is growing as car sales increase.
• Real-time analysis: This is perhaps the best embodiment of "time is life". Automakers collect real-time data from vehicles to identify potential failures and fix them before any damage occurs.
• Low-cost computing and storage: When talking about massive amounts of data, it is difficult not to mention its cost. Low cost makes big data processing sustainable.

- IoV Big Data Architectures

An IoV Big Data Architecture refers to a system designed to manage and analyze the large volumes of data generated by connected vehicles within the Internet of Vehicles (IoV) network, allowing for real-time processing and insights from information like vehicle location, speed, traffic conditions, and sensor data, often utilizing cloud computing and edge computing technologies to handle the high data throughput and low latency requirements of connected vehicles.

Key areas about IoV Big Data Architectures:

• Data Sources: Vehicles equipped with sensors collect data like GPS location, speed, acceleration, weather conditions, road conditions, and information from other vehicles nearby through V2V (Vehicle-to-Vehicle) communication and V2I (Vehicle-to-Infrastructure) communication with roadside units (RSUs).
• Data Types: This data can be diverse, including real-time streams, historical data, and sensor readings, requiring processing capabilities to handle both structured and unstructured formats.
• Edge Computing: Processing data at the edge of the network, close to where it is generated within the vehicle or RSU, allows for faster decision-making and response times in critical situations.
• Cloud Computing: Large-scale data storage and complex analysis often happen in the cloud, enabling insights across a wider network of vehicles and infrastructure.
• Data Analytics Techniques: Machine learning, deep learning, and other data analytics algorithms are used to identify patterns, predict traffic congestion, optimize routes, and support safety features like collision avoidance.

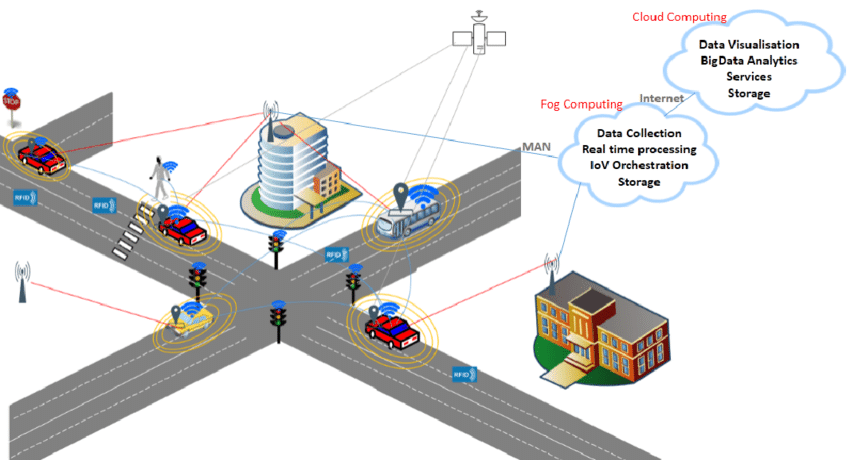

Typical IoV Big Data Architecture Layers:

• Data Acquisition Layer: Sensors on vehicles and roadside infrastructure collect data from the environment.
• Data Transmission Layer: Communication protocols like 5G or dedicated short-range communication (DSRC) transmit data between vehicles and the network.
• Edge Processing Layer: Real-time data processing occurs at the edge of the network using onboard units or RSUs to make immediate decisions.
• Cloud Processing Layer: Large-scale data storage and advanced analytics are performed in the cloud for long-term insights and decision support.

Potential Applications of IoV Big Data Architectures:

• Traffic Management: Real-time traffic updates, congestion prediction, dynamic traffic signal control
• Autonomous Driving: Decision support for self-driving vehicles based on surrounding environment data
• Road Safety: Collision warning systems, proactive safety measures based on vehicle and road conditions
• Fleet Management: Vehicle tracking, fuel efficiency optimization, route planning

[Val di Funes, Italy]

- Next Generation IoV Big Data Architectures

A next generation IoV Big Data Architecture refers to a cutting-edge system designed to handle the massive and complex data generated by connected vehicles (Internet of Vehicles - IoV) using advanced technologies like cloud computing, edge computing, blockchain, and AI, enabling real-time analysis and decision-making while prioritizing security, scalability, and low latency for critical driving scenarios.

Essentially, it's a highly optimized data infrastructure for the future of smart transportation, capable of processing large volumes of diverse vehicle data with minimal delay.

Key features of a next generation IoV Big Data Architecture:

• Edge Computing: Processing data closer to the vehicle source (on-board units or roadside units) for faster response times in critical situations like collision avoidance.
• Cloud Integration: Utilizing cloud platforms to store and analyze large datasets for long-term insights, traffic pattern analysis, and predictive maintenance.
• Real-time Data Streaming: Continuous data flow from vehicles to the cloud, allowing for immediate updates and decision-making.
• Distributed Data Processing: Utilizing frameworks like Apache Spark to efficiently process large volumes of distributed data across multiple computing nodes.
• AI and Machine Learning: Integrating AI algorithms for advanced data analysis, anomaly detection, and predictive modeling to improve traffic management and safety.
• Blockchain Technology: Potential for secure data sharing and tamper-proof record keeping within the IoV ecosystem, enhancing data integrity.

Data types handled in an IoV Big Data Architecture:

• Vehicle location data
• Sensor data (speed, acceleration, weather conditions)
• Traffic information
• Road conditions

Challenges in designing a next-generation IoV Big Data Architecture:

• Data Security and Privacy: Protecting sensitive vehicle and driver information
• Latency Management: Ensuring fast response times for critical real-time decisions
• Heterogeneous Data Sources: Integrating data from different vehicle models and sensors
• Scalability: Handling the growing volume of connected vehicles
