Satellite Control and Management Ground Stations

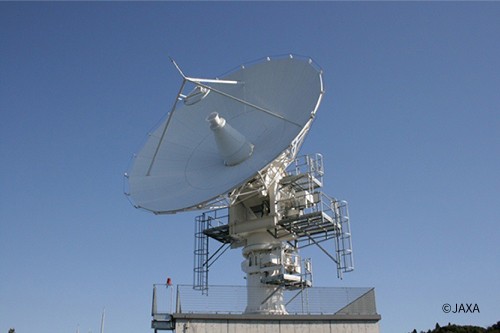

- [Satellite Tracking Antenna - JAXA]
- Overview
Satellite Control and Management Ground Stations are critical Earth-based infrastructure for communicating with, tracking, and managing satellites, acting as the bridge between space assets and mission control.
They perform Telemetry, Tracking, and Command (TT&C) to monitor satellite health, send operational commands, and receive payload data.
These stations, often operating in global networks, require sophisticated scheduling, maintenance, and security to support complex, multi-satellite operations.
1. Core Functions and Components:
- TT&C (Telemetry, Tracking, and Command): The primary function involving sending commands to the satellite and receiving health, status, and location data (telemetry).
- Data Reception (Payload Handling): High-speed, large-capacity communication to receive mission-specific data (images, sensor data).
- Antenna Systems: The physical infrastructure that transmits/receives radio waves, requiring precise, automatic tracking.
- Control Center/Networking: The "nerve center" where engineers monitor performance, manage scheduling, and handle data distribution.
2. Types of Ground Stations and Providers:
- Government/Agency Networks: NASA Deep Space Network, US Space Force Satellite Control Network (SCN), European Space Tracking (ESTRACK).
- Commercial Operators: Kongsberg Satellite Services (KSAT), Swedish Space Corporation (SSC), Leaf Space, RBC Signals.
- Ground Station as a Service (GSaaS): Cloud-based, on-demand, and managed services reducing infrastructure costs for users, such as AWS Ground Station, Microsoft Azure Orbital, and NanoAvionics.
3. Management and Security:
- Modern Challenges: Ground stations are shifting from isolated, "air-gapped" systems to integrated, networked infrastructures, increasing cyber risks.
- Automation & Remote Management: Use of software like Viasat’s VISION or Celestia TTI tools enables remote monitoring, automated scheduling, and performance management.
- Security Protocols: Adoption of advanced techniques like spread spectrum and enhanced encryption to protect command links.
4. Key Networks and Trends:
Major networks like SCN, ESTRACK, and others ensure global coverage for satellite operators.
Trends include increasing speed (e.g., 4Gbps per channel) and integrating ground networks with cloud services (like Google/SpaceX cooperation).
Please refer to the following for more information:
- Wikipedia: Ground Station

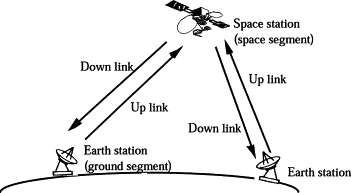

- [Satellite Communication System - ScienceDirect]
- Ground Station Networks
Ground station networks, utilizing large parabolic antennas, enable precise, real-time communication with orbiting satellites and planetary probes.
These networks provide essential services, including tracking with 0.01∘ angular accuracy, measuring distance/velocity, controlling satellites via telemetry, and receiving high-volume (up to 4Gbps) mission data.
1. Key Functions of Ground Station Networks:
- Satellite Tracking & Ranging: High-precision antennas track satellite locations, using time differences to measure distance and the Doppler effect for velocity. This allows for accuracy within 2m for distance and 1cm/sec for velocity, even for deep-space probes hundreds of millions of kilometers away.
- Monitoring & Command (TT&C): Ground stations monitor satellite health using telemetry signals and send operating commands, implementing secure techniques like spread spectrum to prevent cyber-attacks.
- Data Reception & Transmission: Networks receive, store, and process large volumes of image and observation data from satellites, utilizing high-speed technology capable of 4Gbps on a single channel.
- Network Infrastructure: Ground stations act as the vital link between space assets and terrestrial networks. For example, JAXA utilizes stations like the Katsuura Tracking and Communications Station to control missions.
[More to come ...]
