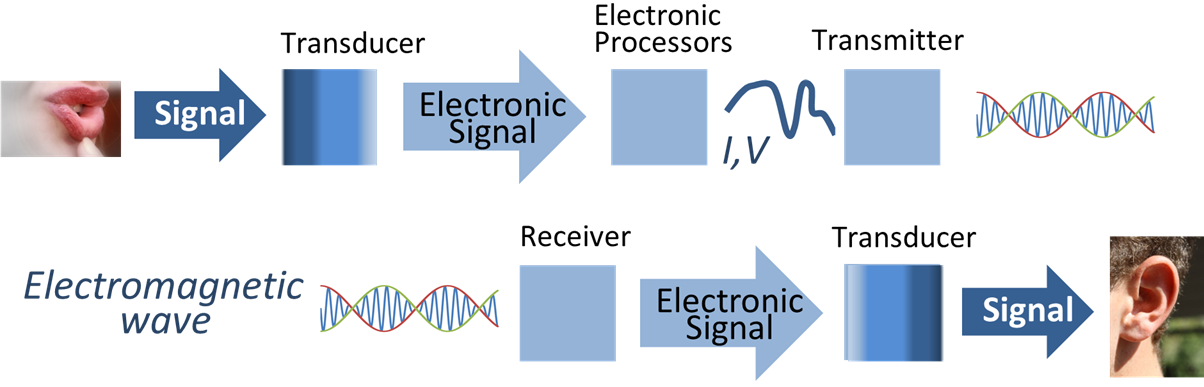

[Signal Processing, Wikipedia]

- Overview

Radio waves are generated artificially by an electronic device called a transmitter, which is connected to an antenna, which radiates the waves. They are received by another antenna connected to a radio receiver, which processes the received signal.

Radio spectrum is the range of electromagnetic frequencies available for wireless communication. Signal processing is the manipulation of signals, including radio waves, to extract information or improve quality. Beamforming is a signal processing technique that directs radio waves towards specific locations by strategically combining signals from multiple antennas.

A. Radio Spectrum:

• The radio spectrum is a valuable resource for wireless communication, encompassing a wide range of frequencies from 3 kHz to 300 GHz.
• Efficient use and management of the radio spectrum are crucial to accommodate the increasing demand for wireless services like mobile phones, internet, and broadcasting.
• Regulations and spectrum allocation by governing bodies ensure that different services have dedicated frequencies and prevent interference.

B. Signal Processing:

• Signal processing involves various techniques to analyze, modify, and enhance radio signals.
• This includes techniques like filtering to remove unwanted noise, modulation to encode information onto the signal, and demodulation to extract the information at the receiver.
• Signal processing plays a crucial role in improving the reliability and performance of wireless communication systems.

C. Beamforming:

• Beamforming is a signal processing technique that uses an array of antennas to concentrate radio waves in a specific direction.
• By strategically combining signals from different antennas, beamforming creates a directional beam, improving signal strength and reducing interference.
• Beamforming is widely used in applications like radar, sonar, wireless communication, and radio astronomy.
• It can be used for both transmitting and receiving signals, allowing for focused communication or signal reception.
• Advantages of beamforming include improved signal strength, reduced interference, and enhanced spatial selectivity.
• Beamforming is particularly important in technologies like 5G and Wi-Fi, where high data rates and efficient use of the radio spectrum are essential.

Please refer to the following for more information:

• Wikipedia: Radio
• Wikipedia: Radio Wave
• Wikipedia: Radio Spectrum

- 5G Spectrum Bands

5G uses three main types of spectrum bands: low-band, mid-band, and high-band (also known as millimeter wave).

Low-band offers broad coverage, mid-band provides a balance of speed and coverage, and high-band delivers the fastest speeds over short distances.

Each type has specific frequency ranges and trade-offs, such as high-band signals being easily blocked by objects.

1. Low-band:

• Frequency: Below 1 GHz (sub-1 GHz)
• Characteristics: Provides the widest coverage and is best for indoor penetration, making it ideal for rural areas.
• Examples: Bands like n5 and n71.

2. Mid-band:

• Frequency: 1 GHz to 6 GHz.
• Characteristics: Offers a balance between coverage and capacity, providing faster speeds than low-band. This is where most 5G networks currently operate.
• Examples: Bands like n77 and n78 (around 3.5 GHz).

3. High-band (mmWave):

• Frequency: Above 24 GHz.
• Characteristics: Delivers multi-gigabit speeds and extremely low latency, but has a very short range and is easily obstructed by walls, trees, and even rain. It is best suited for dense urban areas and specific use cases like stadiums.
• Examples: Bands like n260 (39 GHz) and n261 (28 GHz).

How they work together:

• 5G networks use a combination of these bands to provide the best service.
• A device may connect to a low-band signal for a consistent connection across a wide area and then switch to a higher-band signal for a speed boost when it is closer to a cell tower.
• Carriers use different combinations of these bands to cover different needs, as seen in the U.S. with carriers like Verizon, AT&T, and T-Mobile using various combinations of low, mid, and high-band spectrum.

- 6G and Beyond Spectrum Bands

6G and beyond will utilize a multi-layered spectrum, including existing low, mid, and high bands, and new frequency ranges like upper mid-band (7-24 GHz), sub-terahertz (100-300 GHz), and potentially even lightwave communication.

The upper mid-band is crucial for high performance, while sub-terahertz bands are key for extreme data rates and new sensing capabilities.

A. Key spectrum bands for 6G:

1. Upper mid-band (7-24 GHz): A crucial new range for 6G, with the 7.125–8.400 GHz band emerging as a potential globally harmonized "Golden Band".

• Purpose: Enables high-performance applications like extended reality (XR) and supports wide-area deployments.
• Benefits: Offers higher spectral efficiency and can leverage existing 5G infrastructure sites to reduce costs.

2. Sub-terahertz (sub-THz) and Terahertz (THz) bands (100 GHz - 10 THz): New, extremely high-frequency bands that will be a major focus for 6G and future networks.

• Purpose: Provides extremely wide bandwidths for ultra-high data rates (terabits per second) and enables advanced sensing and positioning applications with millimeter-level accuracy.
• Challenges: Requires new technology to overcome signal loss and cost-effective mass production.

3. Existing spectrum (Sub-6 GHz, mmWave): Low and mid-band spectrum will continue to be vital, with technologies focusing on greater efficiency.

• Purpose: Provides wide-area coverage and capacity, with potential for more efficient use through "refarming" spectrum from older network generations.
• Benefits: Continues to provide coverage, while new, more efficient 6G air interfaces will maximize its potential.

4. Other lightwave spectrum: Some concepts, like Full-Spectrum Wireless Communications (FSWC), propose using a wide range of spectrum, including visible and ultraviolet light, for 6G.

B. Beyond 6G:

• Future wireless communication concepts envision using an even broader range of the electromagnetic spectrum, including lightwave and other technologies.
• The goal is to create a seamless, multi-layered network that leverages every available resource for increased capacity, performance, and new applications.

[Berlin, Germany]

- The Crucial Role of Radio spectrum, signal processing, and beamforming for 5G and Beyond

Radio spectrum, signal processing, and beamforming are crucial for 5G and beyond, as they collectively enable higher speeds, greater capacity, and lower latency.

The use of higher-frequency radio spectrum, especially millimeter wave (mmWave), provides bandwidth for faster data, while signal processing and advanced beamforming techniques, like those in Massive MIMO, direct that energy precisely to users.

This focused approach reduces interference, increases spectral efficiency, and improves overall network performance.

1. Radio Spectrum:

• Higher frequencies (mmWave): 5G utilizes a wider range of frequencies, including millimeter waves, to get more bandwidth for higher data rates.
• Spectral efficiency: Using spectrum more efficiently is critical to handle a massive increase in connected devices and data traffic.
• HetNets: The deployment of a mix of macro, micro, and pico cell stations allows for efficient reuse of radio spectrum across different coverage areas.

2. Signal Processing:

• Massive MIMO: The ability to handle large numbers of antennas at the base station and use sophisticated signal processing is a cornerstone of 5G.
• Channel estimation: Advanced techniques are used to estimate and understand the transmission environment in real-time, which allows for dynamic adjustments.
• Real-time adaptation: Algorithms like the LMS, RLS, and Kalman filters, along with machine learning, are used to process signals and adapt the network in real-time for optimal performance.

3. Beamforming:

• Directional signal focus: Instead of broadcasting in all directions, beamforming focuses radio energy into narrow beams directed at specific users, improving signal strength and reducing waste.
• Interference reduction: By isolating signals for each user, beamforming minimizes interference and allows base stations to handle more simultaneous data streams.
• Improved performance: This technique leads to higher data rates, more reliable connections, and lower latency.
• Energy efficiency: While the complexity of beamforming systems requires significant processing power, focusing energy directly on users can make them more energy-efficient than traditional omnidirectional antennas.

- AI and Quantum Computing in Radio Spectrum, Signal Processing, and Beamforming

Artificial intelligence (AI) and Quantum Computing (QC) revolutionize Radio Spectrum, Signal Processing, and Beamforming by enabling dynamic spectrum management, faster interference detection, and highly efficient, adaptive beamforming for 5G/6G, with AI handling real-time control and QC tackling complex optimizations, leading to ultra-fast, intelligent wireless systems that manage vast data and overcome traditional limitations through superposition and entanglement.

1. Radio Spectrum Management:

• AI's Role: AI analyzes usage patterns to find "spectrum holes," dynamically allocating unused bands for efficiency, and creates self-optimizing networks that adapt to conditions.
• Advanced Monitoring: Machine learning (ML) algorithms (SVM, DBSCAN) detect/classify interference in real-time, moving beyond static rules for dynamic electromagnetic environment management.

2. Signal Processing & Beamforming:

• AI for Speed & Adaptability: AI enables faster, more accurate signal processing and highly adaptive beamforming, optimizing power, reducing interference, and improving system robustness for next-gen comms.
• Quantum Acceleration: Quantum signal processors could use superposition/entanglement for real-time processing of massive data, speeding up communication, IoT, and autonomous systems.
• Quantum-AI Synergy: Quantum AI combines QC's power with AI's intelligence, tackling problems classical systems can't, making AI faster and more powerful for complex communication challenges, says Amazon Web Services (AWS) and IQM.

3. Key Benefits & Future:

• Ultra-Fast Processing: Quantum computers promise exponential speedups for specific tasks, accelerating complex signal analysis.
• Enhanced Wireless: AI and QC create smarter, more efficient wireless networks (5G/6G+) that manage congestion and interference better.
• Overcoming Limits: They address the inverse-square law in space communications and improve signal quality in extreme conditions.
